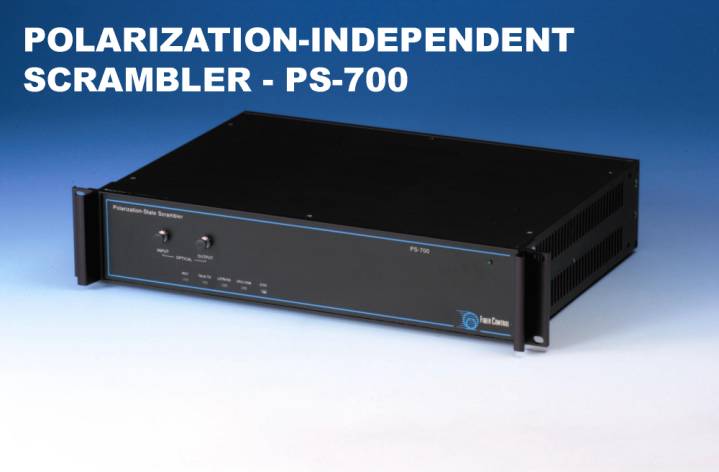

FiberControl’s
polarization-independent polarization state scrambler, PS-700, provides
high speed scrambling of optical signals with low insertion loss and is
independent of the
input state-of-polarization. This robust all fiber design provides a wide
optical bandwidth,
and enables the use of high signal powers, thereby making it suitable for
DWDM
applications.
Our unique RF-modulated format provides near pseudo-random scrambling as
indicated by
the broad RF electrical spectral response, unlike other scramblers, whose
spectral response
reveals well-defined resonances. The high-speed scrambling provides coverage
over a
large portion of the Poincaré sphere. Fully Patented.
Features:
- Polarization
independent
- Broad optical
bandwidth
- High optical power
throughput
- Low back-reflection,
low insertion loss
- Connectorized or fiber
input/output
- Instant on (no
warm-up)
- Wide temperature range
Applications:
- Component level PDL
measurements
- Sub-system PDL testing
- Reduce
polarization-dependent effects
within EDFA optical transmission systems
(PDG, PDL)
- Reduce PDL in test-bed
measurements of
third-party optical equipment
Specifications: (optical, line power,
physical)
|
Optical
|
|
|
Optical Input/Output
|
FC/UPC, FC/APC, or Bare Fiber
|
|
Poincaré Sphere Coverage
|
80% to 95% est. (near pseudo-random)
|
|
Degree-of-Polarization
|
< 5%
|
|
Insertion Loss (typ.)
|
< 0.75 dB
|
|
Return Loss
|
>50 dB, > 55 dB (FC/UPC, FC/APC, or bare fiber)
|
|
Operating Wavelength
|
1300 nm – 1610 nm
|
|
Maximum Optical Input ‡
|
+30 dBm
|
|
Scrambling Rate†
|
4 MHz
|
|
PDL (typ.)
|
<0.05 dB
|
|
Residual AM Modulation
|
<0.5%
|
|
Fiber Type
|
Lucent Technologies, True Wave™
|
|
Line Power / Temperature
|
|
|
Operating Temperature
|
-10°C - +35°C
|
|
Electric Input Power
|
100/120/220/240 ±10% VAC
|
|
Line Frequency
|
50/60 Hz
|
|
Power Receptacle
|
IEC 320
|
|
Physical
|
|
|
Physical Dimensions
|
8.9 x 30.5 x 42.5 cm (3 ½” x 12’’ x 16 ¾ ’’)
|
|
Rack Mount
|
Standard 18 ½’’
|
|
Weight
|
6.58 Kg (14.5 lb.)
|
Note:
- All measurements @ 1550nm
‡ SRS limit (SBS limit is determined by user’s spectral broadening of
sources)
† At the –10dB point from near uniform electrical rf spectral distribution

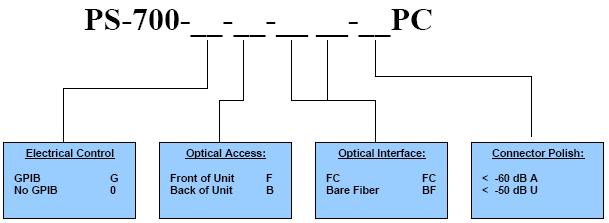

When ordering, please select from the option tables below:
|
