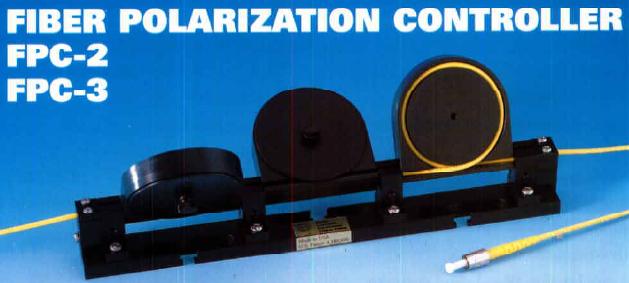

Manual Polarization Controller, FPC - 2, FPC - 3

Features

Specifications

Ordering options

Product data sheet (pdf)





Fiber Control's polarization controller's unique user-friendly design utilizes stress - induced birefringence to alter and control the state-of-polarization of light in single-mode fibers. Each paddle acts as a fractional waveplate. Complete coverage of the Poincaré sphere and polarization is provided by adjusting the angles of the paddles.

The multiple channel diameters were designed to maximize end-user flexibility over a variety of wavelengths and applications. Originally patented at Stanford University by Hervé C. Lefèvre.



Features:

  • Easy top-down fiber loading with paddles in locked horizontal position
  • FPC - 2 accommodates both 900µm buffer and 250µm bare fiber
  • FPC - 3 accommodates 3mm cabled fiber
  • Multidirectional placement on optical table with 1/4" x 20 or M6 screws
  • Smooth adjustable rotation
  • Inserts quickly into fiber-based systems without splicing

Specifications:

Extinction Ratio (typical)

33 dB

Insertion Loss (typical)

0.1dB

Polarization Dependent Loss (typical)

<0.005dB

Footprint Dimensions:

1.0" x 10 7/8"; 2.54 cm x 27.6 cm

Broadband Operation:

1300nm x 1600nm

Diameter FPC - 2

2.2" (5.6cm)

Diameter FPC - 3

2.14" (5.4cm)

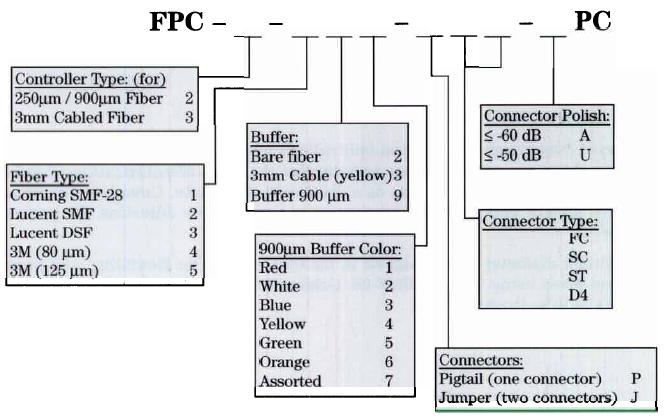

When ordering, please select from the option tables below:
